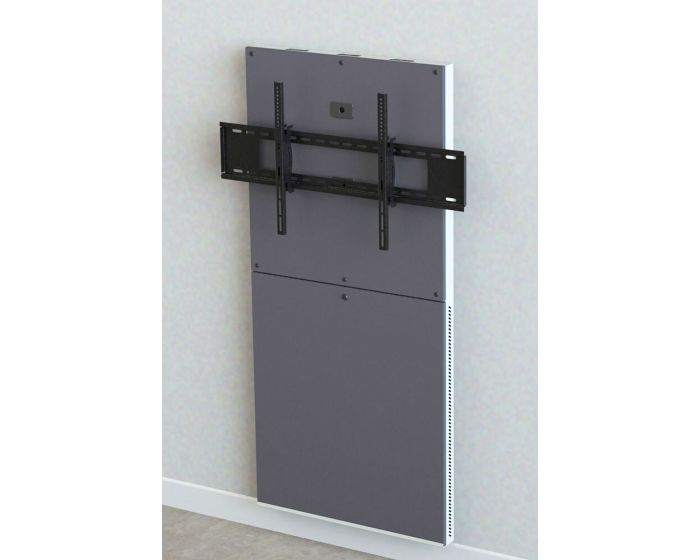

TP200-WM wall offset stand for single monitor applications. A wall mounted metal frame with ventilation, 1U rack and cable management for keeping your install simple and external to wall. Standard color is black. The TP200-WM accommodates 40"-80" displays (160 lbs max). See your monitor manufacturers website for installation guide or spec to confirm mounting hole locations. Max mount hole location is 900mm wide X 500mm high.
Standard Features
- Accommodates 40"-80" displays (160 lbs max and 900mm x 500mm spacing)
- Made with steel and furniture grade laminate
- Adjustable TV height during setup
- Wiring channel inside main pillar
- Includes 1U vertical rack
- Vented sides and top
- Locking bottom panel door New!
- Compatible with AVFI tables and bridges

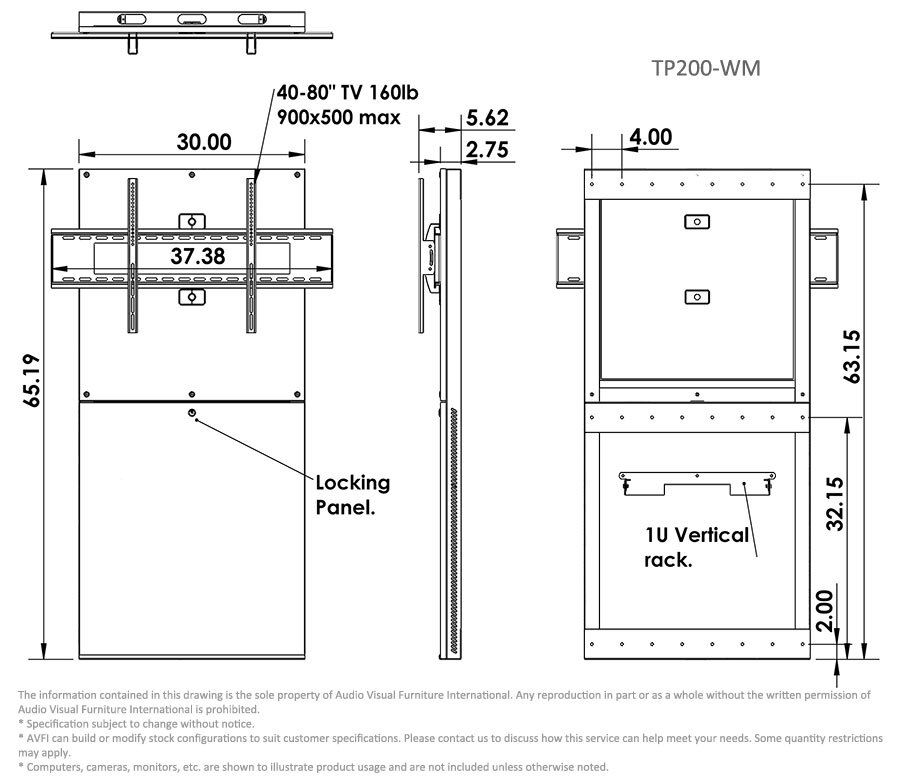

Specifications
- Model: TP200-WM
- Width: 30"
- Depth: 2-3/4"
- Height: 65-1/8"
- Color: Black laminate panel with grey metal frame.
Options
- Room and Quad Camera Bracket BKT-ROOM
- Camera Bracket (32 - 55in TV's) Camera Bracket (32 - 55in TV's)
- Camera Bracket (56 - 90" TV's) TVCB-XL
- Cisco SX20 Codec Bracket BKT-SX20
- Camera/Codec Shelf (Wall Mounted) CS
- 6 Outlet 110V Power Bar PB
