The PM2-D mount for dual monitors integrates with a fixed credenza or our monitor carts to provide a solid, secure connection creating a portable roll-about video system. Designed for table height installations, this unit features a camera/codec shelf. The mount's hidden cable channel allows cable passage from the camera platform right down into the cart's interior cabinet. This mount accommodates most 42"-70" displays, 200 lbs total max. Quicker, easier installation and 8" taller height over previous generation.

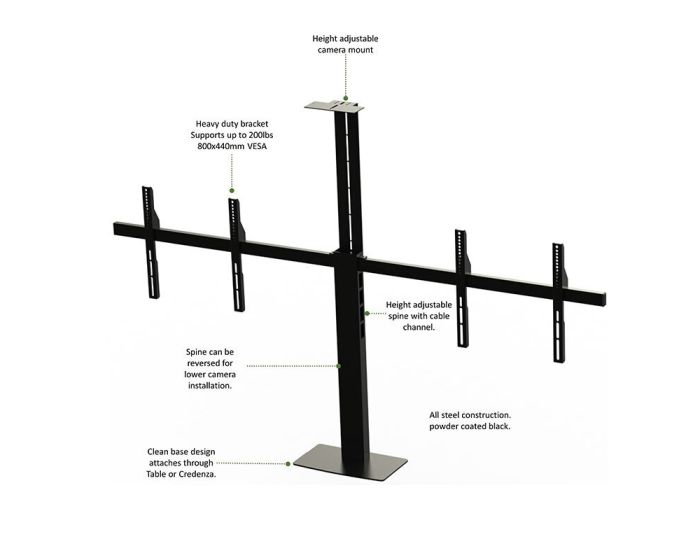

Standard Features
- Accommodates dual 42"-70" displays (200 lbs. total max)
- VESA patterns up to 800 x 440mm
- Sturdy 11 Ga steel construction
- Scratch resistant powder coat finish
- Wiring channel inside main pillar
- Adjustable height camera mount during setup
- Adjustable TV bracket height during setup

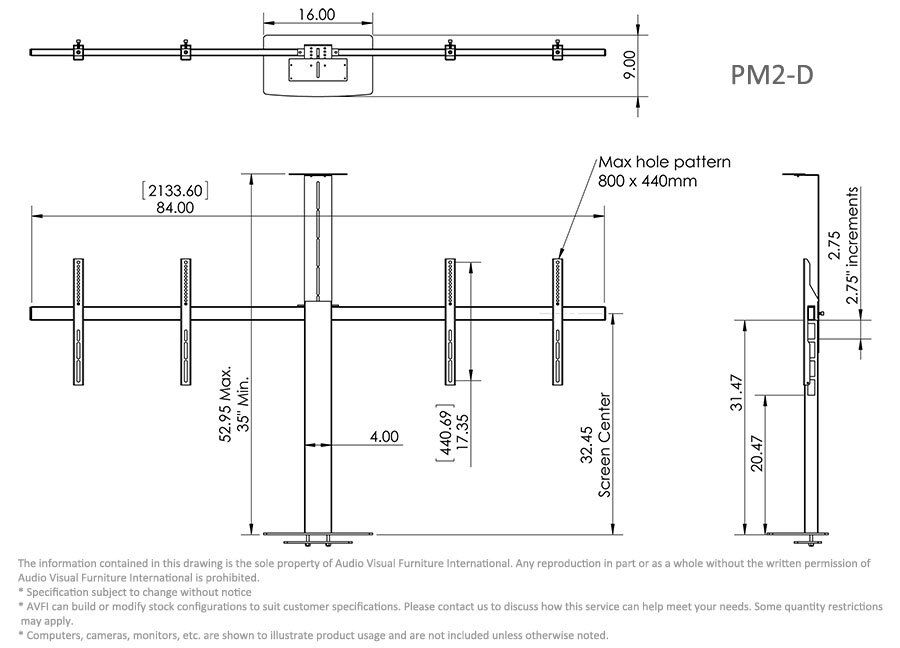

Specifications
- Model: PM2-D
- Width: 84"
- Depth: 9"
- Height: 35"-57"
- Finish: Black
Options
- Room and Quad Camera Bracket BKT-ROOM
- PM-HDCB HD Codec Bracket
- Cisco SX20 Codec Bracket BKT-SX20
- Camera Bracket BKT-ST60
- Power Bar + Mounting Bracket Power Bar + Mounting Bracket
Downloads
Product Info
| Features | The PM2-D mount for dual monitors integrates with a fixed credenza or our monitor carts to provide a solid, secure connection creating a portable roll-about video system. Designed for table height installations, this unit features a camera/codec shelf. The mount's hidden cable channel allows cable passage from the camera platform right down into the cart's interior cabinet. This mount accommodates most 42"-70" displays, 200 lbs total max. Quicker, easier installation and 8" taller height over previous generation. Standard Features
|
|---|---|
| Specification |
|
