CM4070

The CM4070 mount for confidence monitors, designed to accommodate 40" to 70" displays (with a maximum weight of 220 lbs) and adjustable up to 30 degrees. This mount provides a sleek solution for confidence monitors, hiding messy wiring and electronics inside while offering ventilation out the top. It features room for stacked or desktop rack-mounted electronics, ensuring a tidy setup for presentations or performances. The maximum mount hole location is 850mm wide X 440mm high, providing flexibility in installation. The adjustable angle can be optimized for presenters, allowing technicians to customize the setup of the monitor's position for optimal visibility and comfort.

Standard Features

• Accommodates 40" - 70" monitors (220 lbs max)
• Base hides wiring and electronics
• 30 degrees of fine tilt adjustment and height adjustable for larger monitors
• Quick adjustment knobs
• Locking dual rear doors
• Rolls on casters with non-marking wheels, 2 rear are locking

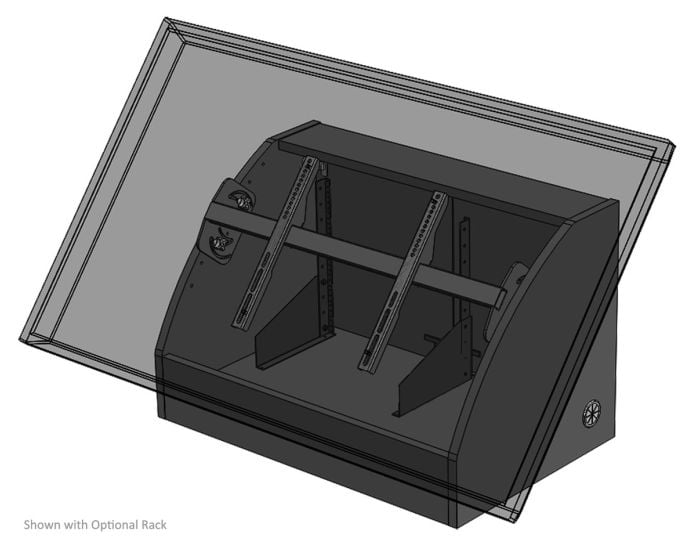

• Can accommodate desktop rack inside (36.88" W X 22.5" D X 21.25" H)

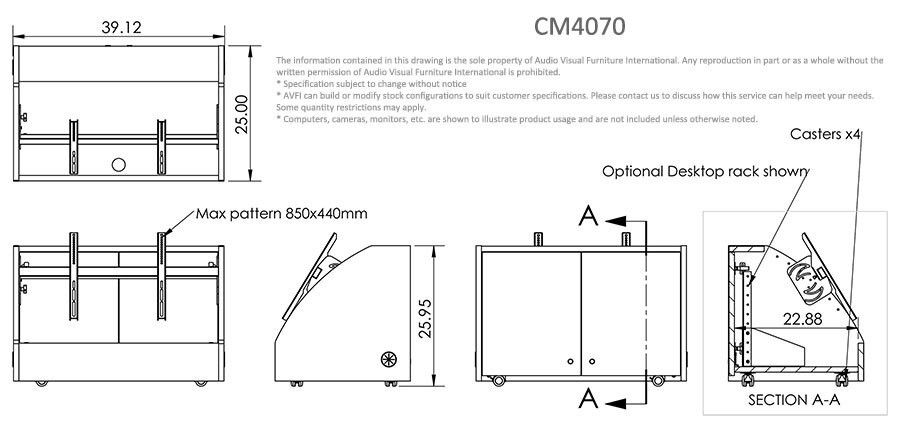

• Adjustable TV bracket for up to 850 X 440mm pattern
• 3 cable grommets (2 sides and 1 bottom rear)

Specifications

• Model: CM4070
• Width: 39"
• Depth: 25"
• Height: 26"+
• Finish: Storm Grey-STL

Options

• 110V Outlet & USB Port Round Cable Well CUB3
• 6 Outlet 110V Power Bar PB
• 9160-10 10U Drop-In/Desktop Rack
